The unlonely planets — Discovery of a Jupiter/Saturn analogue

compiled by Martin Dominik 11-Feb-2006
see also STFC press release
[all information strictly embargoed until 14-Feb-2006, 19:00 GMT]

Scaled versions of Jupiter and Saturn orbiting a star 5000 light-years away, half as massive as the Sun, have been revealed from an effort involving a world-wide net of telescopes using the technique of gravitational microlensing. This result is being reported in the 15-Feb-2008 issue of the journal Science by 4 international teams (MicroFUN, OGLE, MOA, and PLANET/RoboNet) and further researchers, comprising in total 69 scientists from 11 countries (United States of America, Poland, Korea, Japan, New Zealand, United Kingdom, Australia, France, Israel, Chile, Italy).

Artist's impression of the newly detected planets (OGLE-2006-BLG-109Lb and OGLE-2006-BLG-109Lc) orbiting their host star (OGLE-2006-BLG-109L). Permission for use in news reports granted by KASI (Korea Astronomy and Space Science Institute), CBNU (Chungbuk National University), and ARCSEC (Astrophysical Research Center for the Structure and Evolution of the Cosmos).

Also available as 12 sec animation movie in 4 different sizes and qualities
(51.8 MB, 1.5 MB, 888 kB, 640 kB)

While planet OGLE-2006-BLG-109Lb with 0.71 Jupiter masses is 2.3 times as far from its host star as the Earth is from the Sun, the less massive OGLE-2006-BLG-190Lc, 0.27 times the mass of Jupiter, resides at twice the distance from its host star as his fellow companion.

Apart from the fact that their host star is only half as massive as the Sun, and therefore cooler, the OGLE-2006-BLG-109L planetary system otherwise bears a remarkable similarity to the Solar system. Both the ratio between the two masses of the detected giant planets (close to 3:1) and the ratio between their orbital radii (1:2) are remarkably similar to those of Jupiter and Saturn. Similarly, the ratio between the orbital periods of 5 years and 14 years, respectively, resembles that between Jupiter and Saturn (2:5).

Previous observations have shown that not more than 10 per cent of stars appear to host planets with masses and orbits which current planet searches are sensitive to, and the latter reveal their existence by means of a microlensing signature only with a characteristic probability. Our double catch around OGLE-2006-BLG-109L therefore suggests that lonesome gas-giant planets are the exception and planetary systems are the rule.

The gravitational microlensing technique provides a peerless opportunity to study extra-solar planets that resemble the gas giants of the Solar system at their respective orbital radii, given that one does not need to wait for many years for them to complete their orbit. In contrast, the lack of detection efficiency to such objects by other techniques, which dominate the current number count of the New Worlds Atlas (NASA/JPL PlanetQuest), appears to account for the fact that so far only a bit more than 10 per cent of the stars with known planets have been found to host planetary systems.

Properties of the OGLE-2006-BLG-109L system and comparison with the gas-giant planets of the Solar system
  OGLE-2006-BLG-109LOGLE-2006-BLG-109LbOGLE-2006-BLG-109Lc SunJupiterSaturn
coordinates(RA, Dec)(17h52m34.51s, -30:05:16.0) varies
distance from observer DL(1.49 ± 0.13) kpc
(4860 ± 420) lyr
1 AU
mass M (0.50 ± 0.05) Msun(0.71 ± 0.08) Mjup (0.27 ± 0.03) Mjup MsunMjup0.30 Mjup
orbital radius a (2.3 ± 0.2) AU (4.6 ± 0.5) AU5.2 AU 9.6 AU
orbital period P(4.9 ± 0.4) yr (14.0 ± 1.5) yr11.9 yr29.7 yr
effective temperature Teff~ 4000 K
~ 3700 °C
(82 ± 12) K
(-191 ± 12) °C
(59 ± 7) K
(-214 ± 12) °C
5780 K
5510 °C
112 K
-161 °C
95 K
-178 °C

While the lack of respective signatures rules out any further planets of more than Saturn mass closer to the host star down to the separation of Venus from the Sun, there is well the opportunity for terrestrial planets (like Mercury, Venus, Earth, or Mars) to reside there. Moreover, planets taking the roles of Uranus and Neptune, respectively, could also be present. These features make the OGLE-2006-BLG-109L system the most similar to the Solar system amongst the about 25 exo-planetary systems discovered so far.

Artist's impression of the orbits of the newly detected planets (OGLE-2006-BLG-109Lb and OGLE-2006-BLG-109Lc), where further hypothetical planets closer to their host star OGLE-2006-BLG-109L have been added. Permission for use in news reports granted by KASI (Korea Astronomy and Space Science Institute), CBNU (Chungbuk National University), and ARCSEC (Astrophysical Research Center for the Structure and Evolution of the Cosmos).

Since the first discovery of a planet orbiting a star other than the Sun, namely 51 Peg b, the New Worlds Atlas (NASA/JPL PlanetQuest) has grown within a bit more than a decade to include about 270 extra-solar planets, and roughly 25 stars are now known to be orbited by more than a single planet. The recent years have seen the detection of planets that resemble the Earth more and more closely, and now we also see planetary systems being found that bear striking similarities with the Solar system. However, we have to keep in mind that about 100 billion stars populate the Milky Way, which itself is just one of at least 100 billion galaxies in the Universe. Given that, at least for the Milky Way, we know that at least few percent of stars do host planets, we have so far only probed an extremely tiny bit. We should therefore avoid the temptation to overstress the relevance of specific exo-planetary systems - any of them is just one out of huge number that can be expected to be out there. And the Solar system with Earth in it is just one, too.

However, the microlensing technique is well suited to infer a census of planets within the Milky Way. Once we know that planets similar to Earth in systems similar to the Solar system are common (which first hints already suggest), it is straightforward to go ahead with finding them and investigating whether these harbour any forms of life.

Comparison of planet formation around OGLE-2006-BLG-109L and in the Solar system

A widely accepted paradigm of planet-formation theories is that planet formation is boosted once far enough distances from the host star are reached, so that low enough temperatures allow hydrogen compounds such as water, ammonia, and methane to condense into solid ice grains. This substantially increases the number of available cores onto which further material can be accreted. The corresponding 'snow line' that marks this transition is thought to separate the giant planets of the Solar system (Jupiter, Saturn, Uranus, Neptune) from the terrestrial ones (Mercury, Venus, Earth, Mars). A quite simplified model of planet formation would see the most massive giant planet to form not far outside the snow line, and the mass of futher planets to decrease with distance from their host star. In fact, the Solar system roughly matches such a scenario.

Given that the equilibrium temparatures of OGLE-2006-BLG-109Lb and OGLE-2006-BLG-109Lc are about 30 per cent lower than those of Jupiter and Saturn, respectively, one might wonder whether there might be another more massive planet in a closer orbit. However, the lack of respective signatures rules out any potential further planets of Saturn mass or more closer to the host star for orbital radii exceeding that of Venus, leaving the opportunity for terrestrial planets to reside there. Moreover, planets taking the roles of Uranus and Neptune, respectively, could also be present in the OGLE-2006-BLG-109L system. Most of the known planetary systems around stars other than the Sun contain close-in gas-giant planets at orbital radii where we find the terrestrial planets of the Solar system, which are believed to have migrated into their current orbit after having formed further apart. Other cases show increasing planet masses with distance from their host star. It turns out that one is left with OGLE-2006-BLG-109L as the only firmly established system so far that matches vital characteristics of the Solar system, although there have been suggestions for less massive second outer gas-giant planets to orbit 47 UMa and 14 Her, respectively.

Timeline of discovery, data, and model light curve

On 26 March 2006, the OGLE team, led by Prof Andrzej Udalski from Warsaw University, reported by means of their Early-Warning System (EWS) their 109th event towards the Galactic bulge in that year, systematically named OGLE-2006-BLG-109. Two days later, on 28 March, they found an unexpected brightening of this event by about 10 per cent, which could have been the signature of a planetary companion to the lens star. In fact, it was such a signal that led to the detection of OGLE-2005-BLG-390Lb, with a mass about five times that of Earth the most Earth-like extra-solar planet at the time of its discovery.

This exciting news from OGLE did not remain unheard, and other teams working in the field of gravitational microlensing started follow-up observations on OGLE-2006-BLG-106. For the UK-based RoboNet microlensing programme, led by Prof Keith Horne from the University of St Andrews, Dr Martin Dominik, Royal Society University Research Fellow at the same institution, devised a sampling strategy and passed it on to Dr Martin Burgdorf, the RoboNet project scientist at the Astrophysics Research Institute (ARI) of Liverpool John Moores University (LJMU), who entered the respective observing requests into the scheduler.

On 5 April the event underwent a deviation from the single-lens form indicative of a binary lens. Within 12 hours of this deviation, Dr Scott Gaudi, from Ohio State University, the lead author of the publication and member of the MicroFUN team, found that a preliminary model indicated a Jovian-class planet, which he predicted to generate an additional peak on 8 April. This peak turned out to occur, manifesting the discovery of OGLE-2006-BLG-109Lc with a mass close to that of Saturn. However, the morning after Dr Gaudi made the prediction, he woke up with data that surprisingly showed an additional peak on 5-6 April, which later turned out to be the signature of a further Jovian-class planet, namely OGLE-2006-BLG-109Lb, more massive than OGLE-2006-BLG-109Lc and orbiting closer to their host star.

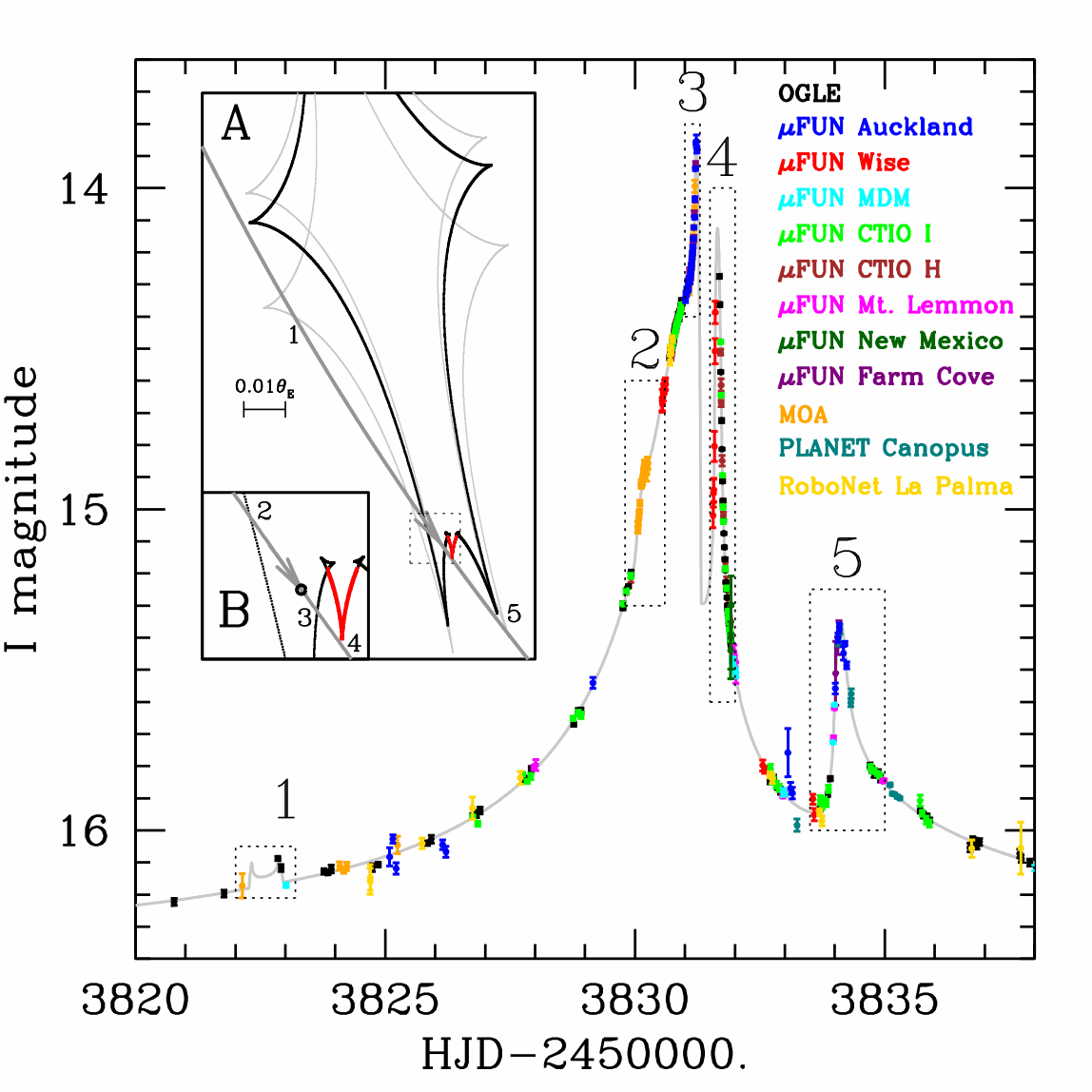

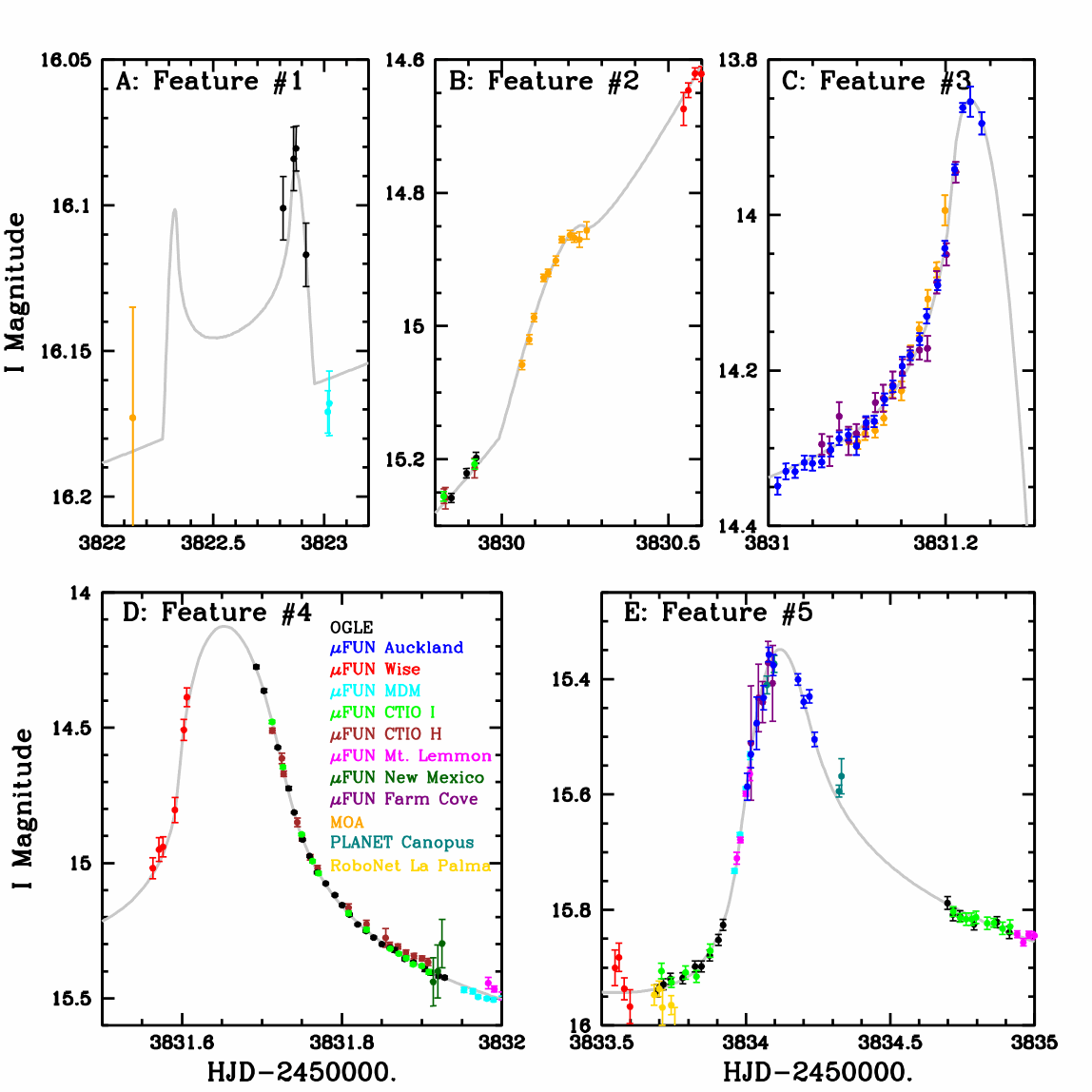

Data from 12 sites collected by the 4 involved observing campaigns along with a model light curve, containing 5 distinctive features, show in detail on the right panel: (1) the initial bump, reported by OGLE on 28 March 2006; (2) a deviation resulting from the model that was a-posteriori confirmed by later identified data; (3) deviation of 5 April 2006, indicative of lens binarity; (4) surprising peak revealing OGLE-2006-BLG-109Lb, the more massive of the two discovered planets; (5) the predicted peak confirming the preliminary planetary model involving OGLE-2006-BLG-109Lc. The time axis shows heliocentric Julian Days, where HJD = 2453827.0 corresponds to 1 April 2006, 12:00 UT. An inset in the left panel shows the trajectory of the observed source star relative to the lens star OGLE-2006-BLG-109L along with the caustics created by the latter and its planets, which mark those positions on the sky, for which a point-like source star would be infinitely magnified (whereas the magnification is large, but finite for a realistic source star with finite angular extent). Given that the orbital motion of OGLE-2006-BLG-109Lc significantly alters the position of the caustics during the course of the event, it is shown at different phases, corresponding to the epochs of features 1 and 5 (in grey), and features 2–4 (in black). θE denotes the angular Einstein radius, which constitutes the unique characteristic physical scale of microlensing, depending on the mass of the foreground lens star, as well as on the distances of lens and source star from the observer.

Determination of planet properties

The light curve of OGLE-2006-BLG-109L is full of characteristic features, which are well explained by the presence of planet OGLE-2006-BLG-109Lc, with the exception of feature 4, which reveals its fellow companion OGLE-2006-BLG-109Lb. Despite of OGLE-2006-BLG-109Lb being the more massive planet, it causes the less prominent effect. This is due to the fact that microlensing signatures of planets not only decrease towards smaller masses, but also with the angular separation of the planet from its host star being further away from the angular Einstein radius θE. In fact, OGLE-2006-BLG-109Lc is further away from this 'resonance'.

For OGLE-2005-BLG-390Lb, only probability densities for its properties could have been derived from the likelihood that a specific choice led to the determined model parameters as well as a kinematic model of the Milky Way and a mass function of the lens star. In contrast, the model parameters themselves (along with their uncertainties), define the properties of OGLE-2006-BLG-109Lb and OGLE-2006-BLG-109Lc. This became possible with not only the finite angular size of the source star, but also the acceleration of the Earth's orbit having detectable effects on the observed light curve. With OGLE-2006-BLG-109Lc being probed by characteristic features over a time span of more than 2 weeks, the two components of its proper motion relative to its host star can be measured. Assuming that it is circular, its orbit can thereby be completely determined, except for a two-fold ambiguity, where the values listed above for the (three-dimensional) orbital radiii correspond to the stochastically favoured solution. While the inclination of the orbit of OGLE-2006-BLG-109Lc follows from the measured proper motion vector and other model parameters, a coplanar orbit has been assumed for OGLE-2006-BLG-109Lb.
